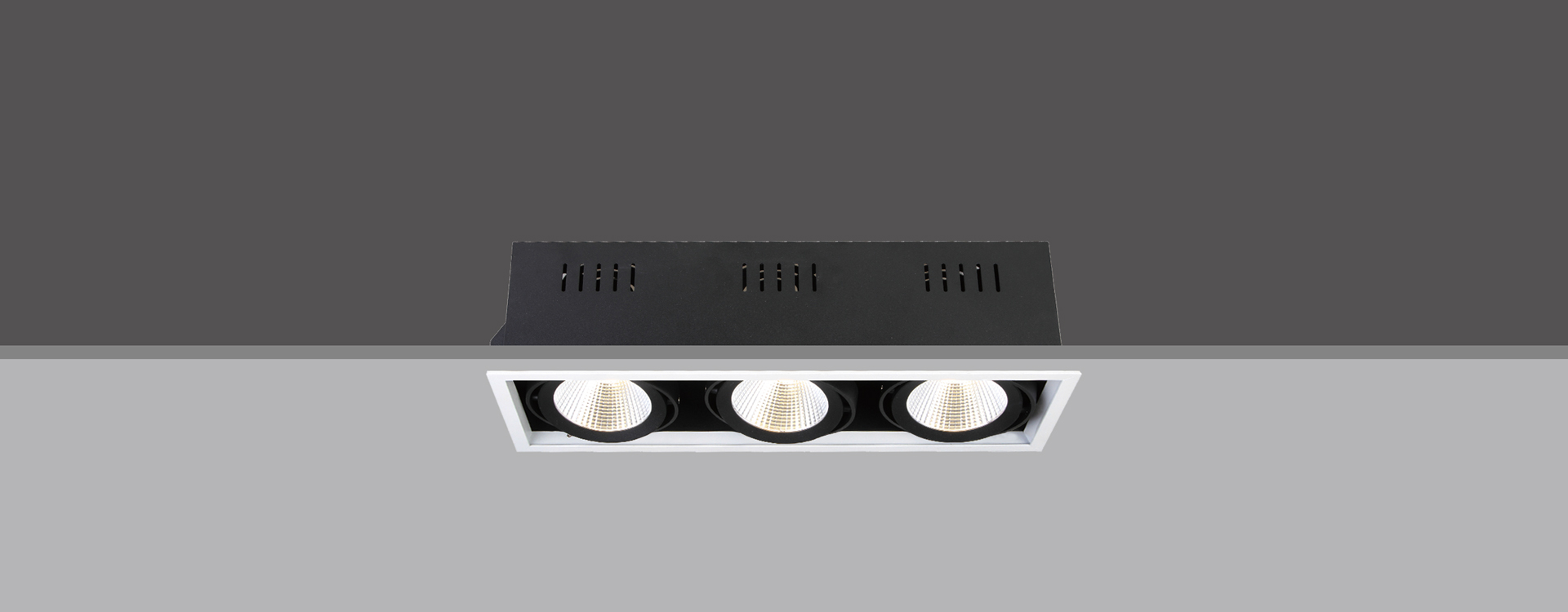

FRAME LED Square Recessed Downlight
FRAME is a square recessed downlight, compact and elegant design, easy for installation. Using lastest LED technology. It's suitable for office building, shopping mall, hotel, high-class club and exhibition & display area etc… Steel housing and Die-casting aluminium heat dissipation part. Powder coated finish. High transparancy optic lens, minimized glare light efficiently. Driver is connected externally. Adjustable angle: ±20°. No UV or IR, can protect commodities properly, to avoid the color fading from radiation.
Product specifications
Luminaire Type:FRAME LED Square Recessed Downlight
Luminaire Code :81012800.T/81033328.T/81032108.T
Input Voltage:220-240V
Wattage:3*20/3*26/3*30W
Beam Angle:15°/24°/40°
Materials :Aluminum
Cutout:475*160mm
Product Features
Line diagram
Optional Accessories
Reflector color
Frame Color
TYPE
Power
- Power
Beam Angle
- Beam Angle
CRI
- CRI
Color Temperature
- Color Temperature
Optional Accessories
- Optional Accessories
Dimming Method
- Dimming Method
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
Frame Color
- Frame Color
Reflector Color
- Reflector Color
Protection Grade
- Protection Grade
- IP 20
Model
Luminous
Flux
Flux
(LM)
Power
(W)
Beam
Angle
Angle
(°)
CRI
Color
Temperature
Temperature
(K)
Specification
IES
Instruction
Manual
Manual
