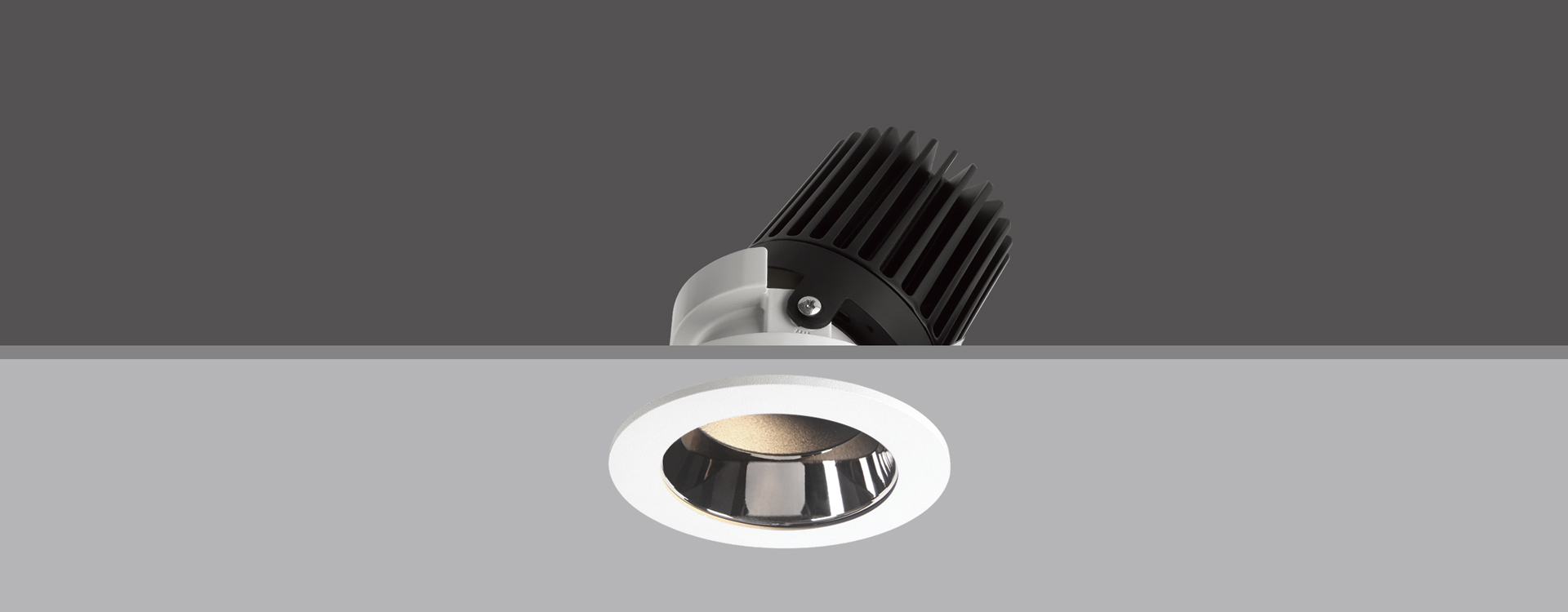

CORE PRO Professional Recessed Downlight Collection
CORE PRO is a tiny recessed downlight with elegant and compact design, it is featured with saturated color and high color rendering index. Four different kinds of reflectors for choice to achieve the perfect lighting effect, multi-functional for both fixed and adjustable application. IP44 rating to ensure it can be applicable for humid environment, it is widely used for hotel, villa, high class club, commercial lighting area etc…Die-casting aluminium housing with powder coating finish. Deep-in design structure to minimize glare light efficiently, there are various of reflectors like dark light reflector, glossy aluminium reflector, satin reflector, mat black reflector for option. IP44 to ensure it can be applicable for humid environment. Different of optic accessories are for choices, extrusion glass diffuser, honeycomb louvre, soft glass diffuser, to meet the different design requirements. Adjustable angle: ±15°.Avoid using acids or alkalis detergents and other corrosive solvents to clean the fitting.
Product specifications
Luminaire Type:CORE PRO Professional Recessed Downlight Collection
Luminaire Code :81053008/81053058
Input Voltage:220-240V
Wattage:15-20W
Cutout:Dia 105 mm
Beam Angle:18°/24°/34°
Materials:Aluminium
Finish:Powder coated
Product Features
Line diagram
Optional Accessories
Reflector color
Frame Color
TYPE
Power
- Power
- 15
- 20
Beam Angle
- Beam Angle
- 18
- 24
- 38
CRI
- CRI
- >90
Color Temperature
- Color Temperature
- 2700
- 3000
- 4000
- 5000
Optional Accessories
- Optional Accessories
Dimming Method
- Dimming Method
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
Frame Color
- Frame Color
- White.png
- Grey.png
- Black.png
Reflector Color
- Reflector Color
- darklight.png
- White.png
- satin.png
- mat black.png
Protection Grade
- Protection Grade
- IP 20
Model
81053008
81053008
81053008
81053008
81053008
81053008
81053008
81053008
81053008
81053008
81053008
81053008
81053058
81053058
81053058
81053058
81053058
81053058
81053058
81053058
81053058
81053058
81053058
81053058
Luminous
Flux
Flux
(LM)
843.8
942.8
938.8
904.1
987.0
982.8
947.1
1045.9
1041.5
1041.5
1087.7
1288.5
1298.1
1165.4
1348.9
1359.0
1220.9
1429.5
1440.1
1489.9
1501.0
Power
(W)
15
15
15
15
15
15
15
15
15
15
15
15
20
20
20
20
20
20
20
20
20
20
20
20
Beam
Angle
Angle
(°)
18
24
38
18
24
38
18
24
38
18
24
38
18
24
38
18
24
38
18
24
38
18
24
38
CRI
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
Color
Temperature
Temperature
(K)
2700
2700
2700
3000
3000
3000
4000
4000
4000
5000
5000
5000
2700
2700
2700
3000
3000
3000
4000
4000
4000
5000
5000
5000
