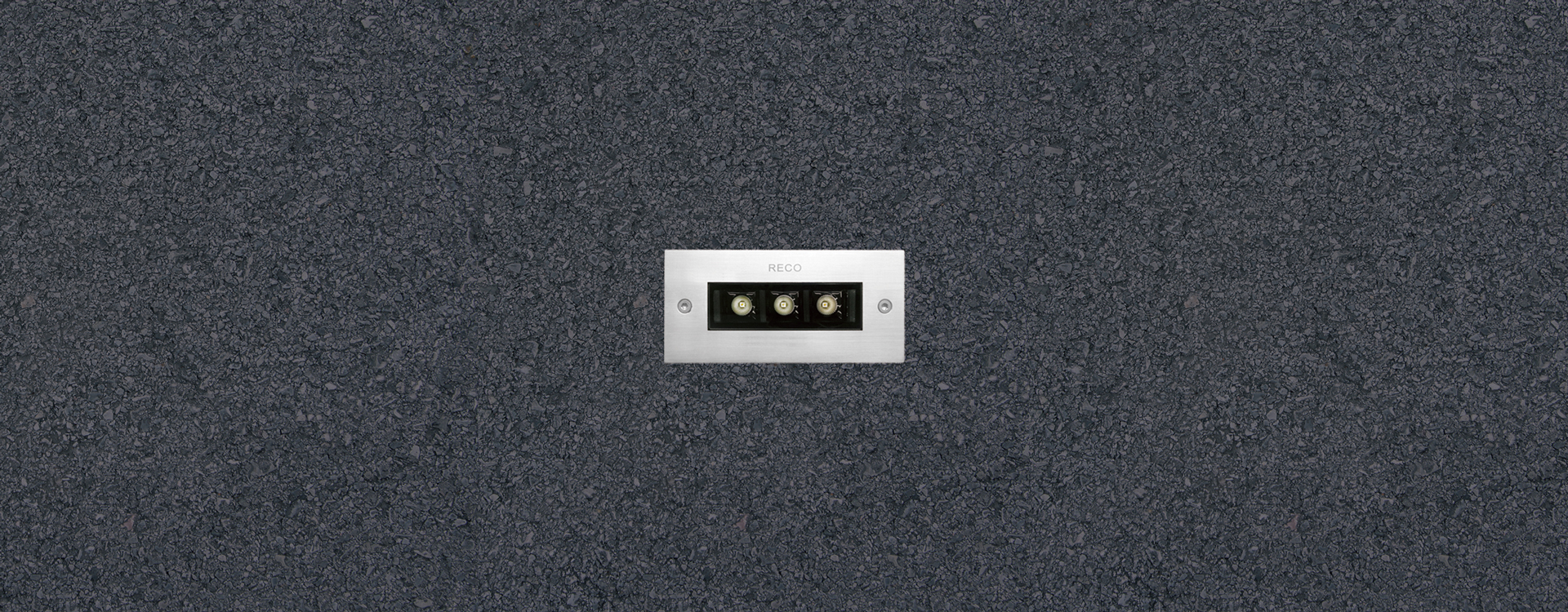

STATICLinear Inground Uplighter
STATIC Linear Inground light series with artistic appearance, integrated heat dissipation structure design, clear glass diffuser and frosted glass diffuser for choice. It's widely used for plaza, park, shopping center, path,courtyard as well as the highlight of sculpture decoration & outdoor wall etc…Die-casting aluminium housing & 304# stainless steel frame.Use M4 stainless screw to fix the pre-buried box.10mm safety tempered glass, silicon gasket.Professional black optic reflector.Remote LED driver is required.Loading weight：3500Kg(5km/h).Surface temperature≤45°.DMX dimming is on request.Installation way: with pre-buried box.
Product Specification
Luminaire Type:STATIC Linear Inground Uplighter
Luminaire Code :85021638/85021668
Input Voltage:DC 24 V
Wattage:3*1W/3*2W
Beam Angle:10°/30°/40°
Materials:Aluminum+stainless
Finish:stainless
Product Features
Dimension Figure
Optional Accessories
Reflector Color
Frame Color
Type
Power
- Power
Beam Angle
- Beam Angle
CRI
- CRI
Color Temperature
- Color Temperature
Optional Accessories
- Optional Accessories
Dimming Method
- Dimming Method
- 1-Non Dim
Frame Color
- Frame Color
- satin.png
Reflector Color
- Reflector Color
Protection Grade
- Protection Grade
- IP 67
Model
Luminous
Flux
Flux
(LM)
Power
(W)
Beam
Angle
Angle
(°)
CRI
Color
Temperature
Temperature
(K)
Specification
IES
Instruction
Manual
Manual
Collect
Project
