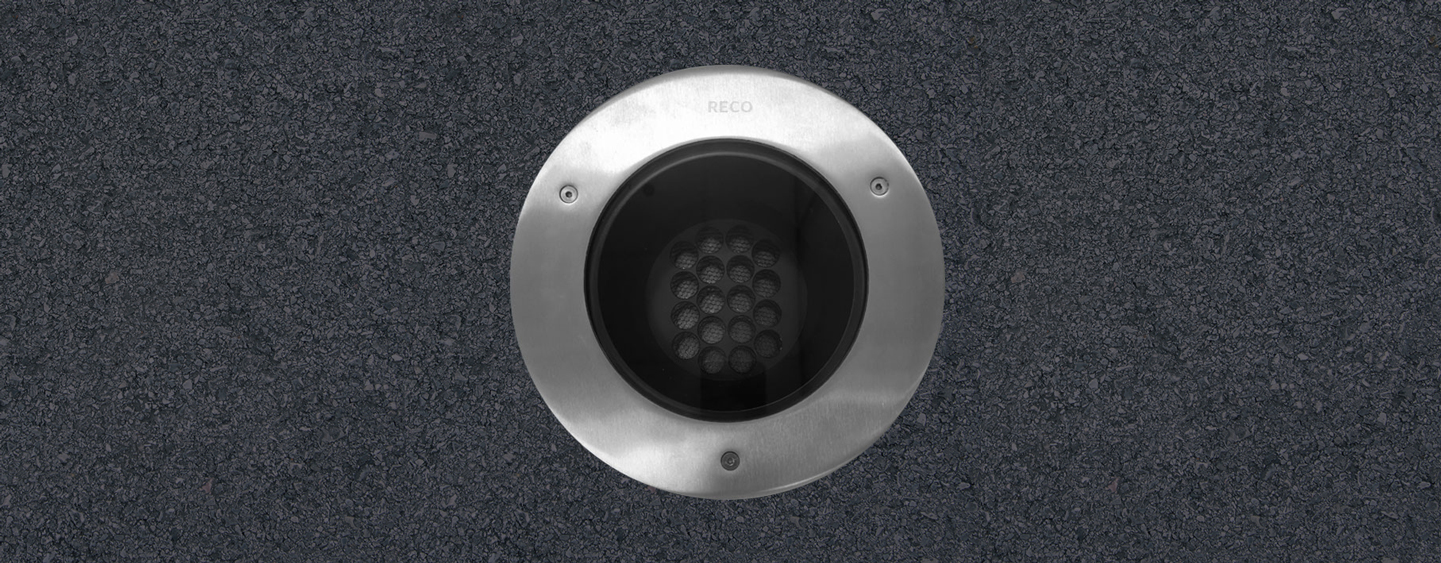

WARF LEDInground Uplighter
WARF LED inground light is with simple & elegant design, high efficiency with excellent glare control. Using latest new LED technology. It's widely used for plaza, park, shopping center, path, courtyard as well as the highlight of sculpture decoration & outdoor wall etc…Die-casting aluminium housing & 304# stainless steel frame. High transparency lens optic.Deep in the light source design, minimized glare light efficiently.10mm safety tempered glass, silicon gasket. Loading weight：2000Kg(5km/h).Surface temperature≤60°.Adjustable angle: ±25°.
Product Specification
Luminaire Type:WARF LED Inground Uplighter
Luminaire Code :85021510/85021530/85021580/85021590
Input Voltage:DC 24 V
Wattage:6*2/9*2/12*2/18*2W
Beam Angle:8°/15°/30°/40°/60°
Materials :Aluminum+stainless
Finish:stainless
Product Features
Dimension Figure
Optional Accessories
Reflector Color
Frame Color
Type
Power
- Power
Beam Angle
- Beam Angle
CRI
- CRI
Color Temperature
- Color Temperature
Optional Accessories
- Optional Accessories
Dimming Method
- Dimming Method
- 1-Non Dim
- 5-DMX512
Frame Color
- Frame Color
- satin.png
Reflector Color
- Reflector Color
Protection Grade
- Protection Grade
- IP 67
Model
Luminous
Flux
Flux
(LM)
Power
(W)
Beam
Angle
Angle
(°)
CRI
Color
Temperature
Temperature
(K)
Specification
IES
Instruction
Manual
Manual
