CONSTAN-Semi Outdoor-Shanghai RECO Lighting Manufacture Co.,Ltd.

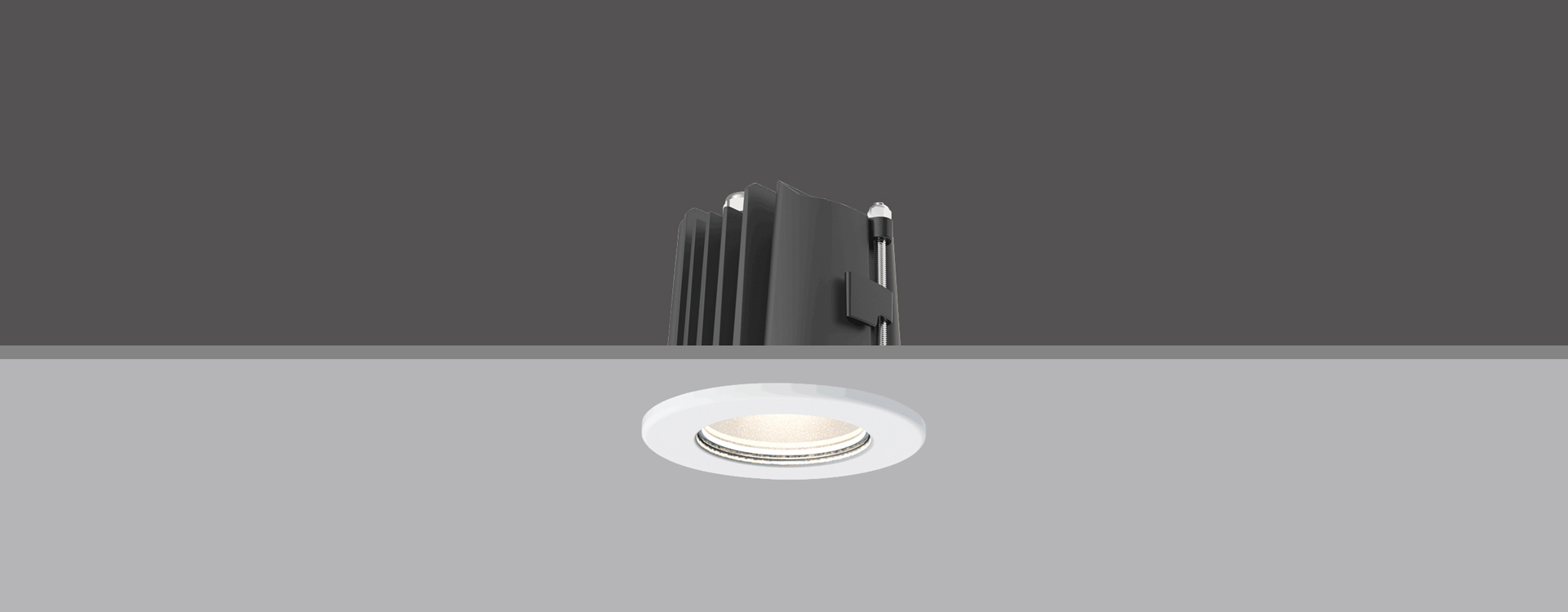

CONSTAN Waterproof Downlight
STERN is a professional high lumen output LED downlight, excellent anti glare control, can meet different requirement for your space. With simple and elegant design, easy for installation. Using latest new COB technology. IP65 rated version make it more stronger and wider use in an tough environment. Die-casting aluminum housing. Powder coated finish in White and Black. High purity anodized aluminum reflector, minimized glare light efficiently. Driver is connected externally. No UV or IR, can protect commodities properly, to avoid the color fading from radiation.
Product specifications

Luminaire Type:IP65 waterproof recessed downlight

Luminaire Code :81554418

Wattage:12

Input Voltage:220-240V

Cutout:Dia 80mm

Beam Angle:15°/24°/36°/45°/60°/Wallwasher

Materials :Aluminum

Finish:Powdercoated finish

Product Features
Line diagram
Optional Accessories
Reflector color
Frame Color
TYPE
Power
  • Power
  • 15
Beam Angle
  • Beam Angle
  • 15
  • 24
  • 36
  • 45
  • 60
CRI
  • CRI
  • >90
Color Temperature
  • Color Temperature
  • 400
  • 2700
  • 3000
  • 4000
  • 5000
Optional Accessories
  • Optional Accessories
Dimming Method
  • Dimming Method
  • 1-Non Dim
  • 2-Phase dimming
  • 3-0-10V dimming
  • 4-DALI dimming
Frame Color
  • Frame Color
  • Black
  • Grey
  • White
Reflector Color
  • Reflector Color
Protection Grade
  • Protection Grade
  • IP 65
Model
81554418
81554418
81554418
81554418
81554418
81554418
81554418
81554418
81554418
81554418
81554418
81554418
81554418
81554418
81554418
81554418
81554418
81554418
81554418
81554418
Luminous
Flux

(LM)

985.1
1043.6
1102.1
966.8
1031.3
1092.5
1153.8
1012.1
1092.8
1157.7
1222.6
1072.5
1139.0
1206.6
1274.3
1117.8
Power

(W)

15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
Beam
Angle

(°)

15
24
36
45
60
15
24
36
45
60
15
24
36
45
60
15
24
36
45
60
CRI
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
Color
Temperature

(K)

2700
2700
2700
2700
2700
3000
3000
3000
3000
3000
4000
4000
4000
4000
400
5000
5000
5000
5000
5000
