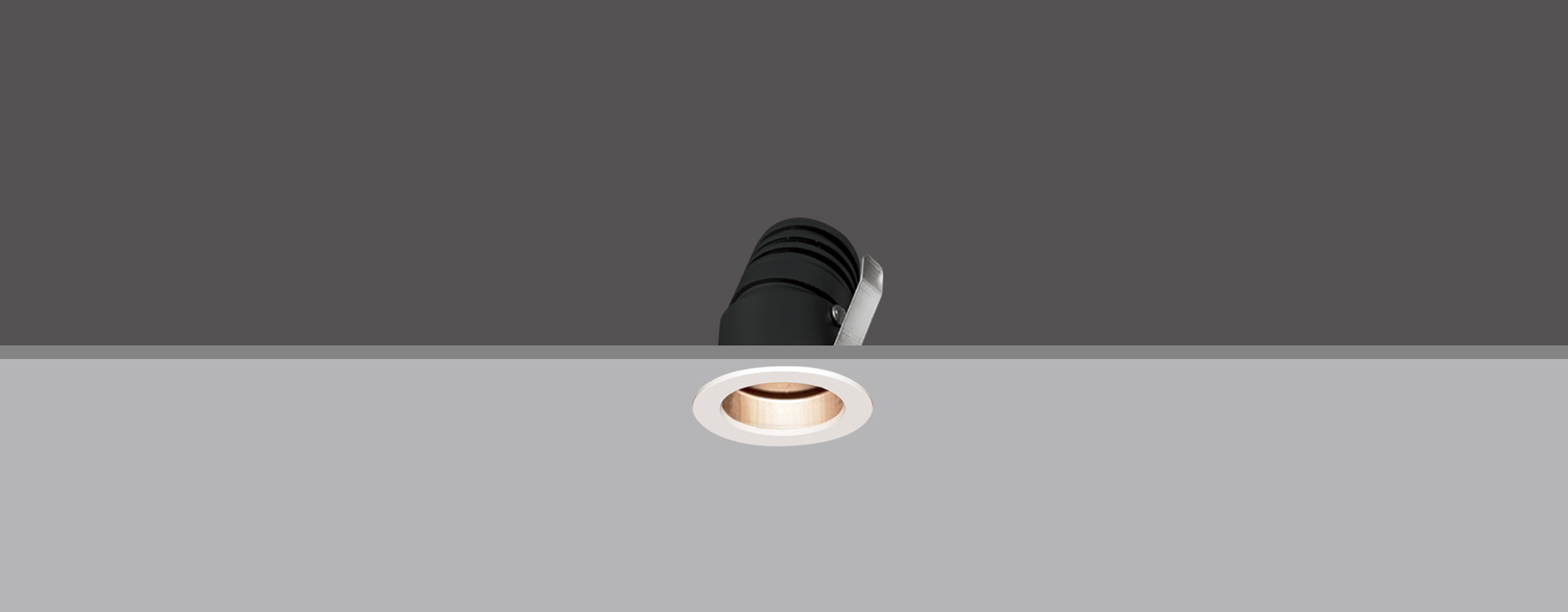

ZONE LED Hotel Recessed Downlight Collection
ZONE LED downlight is with simple and elegant design, easy for installation. Have excellent control of glare light. It's suitable for office building, shopping mall, hotel, high-class club and exhibition & display area etc… Pure aluminium housing. Powdercoating finish. Led driver is connected externally. Fixed. Easy for installation and maintenance.
Product specifications
Luminaire Type:ZONE LED Hotel Recessed Downlight Collection
Input Voltage:220-240V
Wattage:6 W
Cutout:Dia 50mm
Beam Angle:15°/24°
Materials :Aluminum
Finish:Powdercoated finish
Net Weight:0.25 KG
Product Features
Line diagram
Optional Accessories
Reflector color
Frame Color
TYPE
Power
- Power
- 6
Beam Angle
- Beam Angle
- 15
- 24
CRI
- CRI
- >90
Color Temperature
- Color Temperature
- 2700
- 3000
- 4000
- 5000
Optional Accessories
- Optional Accessories
Dimming Method
- Dimming Method
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
Frame Color
- Frame Color
- White
- Black
- Grey
Reflector Color
- Reflector Color
Protection Grade
- Protection Grade
- IP 20
Model
81032350.2
81032350.2
81032350.2
81032350.2
81032350.2
81032350.2
81032350.2
81032350.2
Luminous
Flux
Flux
(LM)
383.6
438.2
403.5
460.8
426.6
487.3
436.5
498.6
Power
(W)
6
6
6
6
6
6
6
6
Beam
Angle
Angle
(°)
15
24
15
24
15
24
15
24
CRI
>90
>90
>90
>90
>90
>90
>90
>90
Color
Temperature
Temperature
(K)
2700
2700
3000
3000
4000
4000
5000
5000
