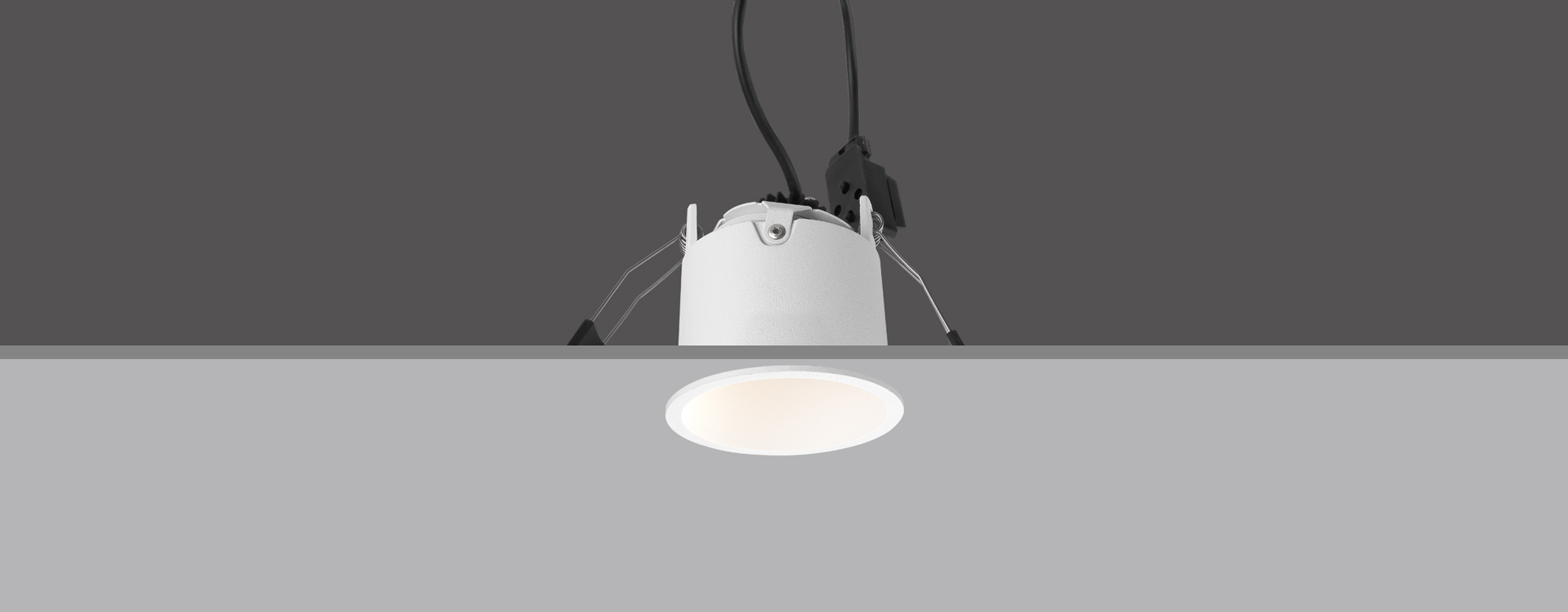

FOCUS LED Hotel Recessed Downlight
FOCUS LED downlight is with super slim trim and elegant design, easy for installation. Have excellent control of glare light. It's suitable for office building, shopping mall, hotel, high-class club and exhibition & display area etc… Die-casting aluminium housing.Powdercoating finish.Led driver is connected externally.Easy for installation and maintenance.
Product specifications
Luminaire Type:FOCUS LED Hotel Recessed Downlight
Input Voltage:220-240V
Wattage:7 W
Cutout:Dia 76mm
Beam Angle:20°/40°
Materials :Aluminum
Finish:Powdercoated finish
Net Weight:0.25 KG
Product Features
Line diagram
Optional Accessories
Reflector color
Frame Color
TYPE
Power
- Power
- 7
Beam Angle
- Beam Angle
- 20
- 40
CRI
- CRI
- >90
Color Temperature
- Color Temperature
- 2700
- 3000
- 4000
- 5000
Optional Accessories
- Optional Accessories
Dimming Method
- Dimming Method
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
Frame Color
- Frame Color
- White
- Grey
- Black
Reflector Color
- Reflector Color
Protection Grade
- Protection Grade
- IP 20
Model
81012780
81012780
81012780
81012780
81012780
81012780
81012780
81012780
Luminous
Flux
Flux
(LM)
379.8
409.6
399.4
430.8
422.4
455.5
432.2
466.1
Power
(W)
7
7
7
7
7
7
7
7
Beam
Angle
Angle
(°)
20
40
20
40
20
40
20
40
CRI
>90
>90
>90
>90
>90
>90
>90
>90
Color
Temperature
Temperature
(K)
2700
2700
3000
3000
4000
4000
5000
5000
