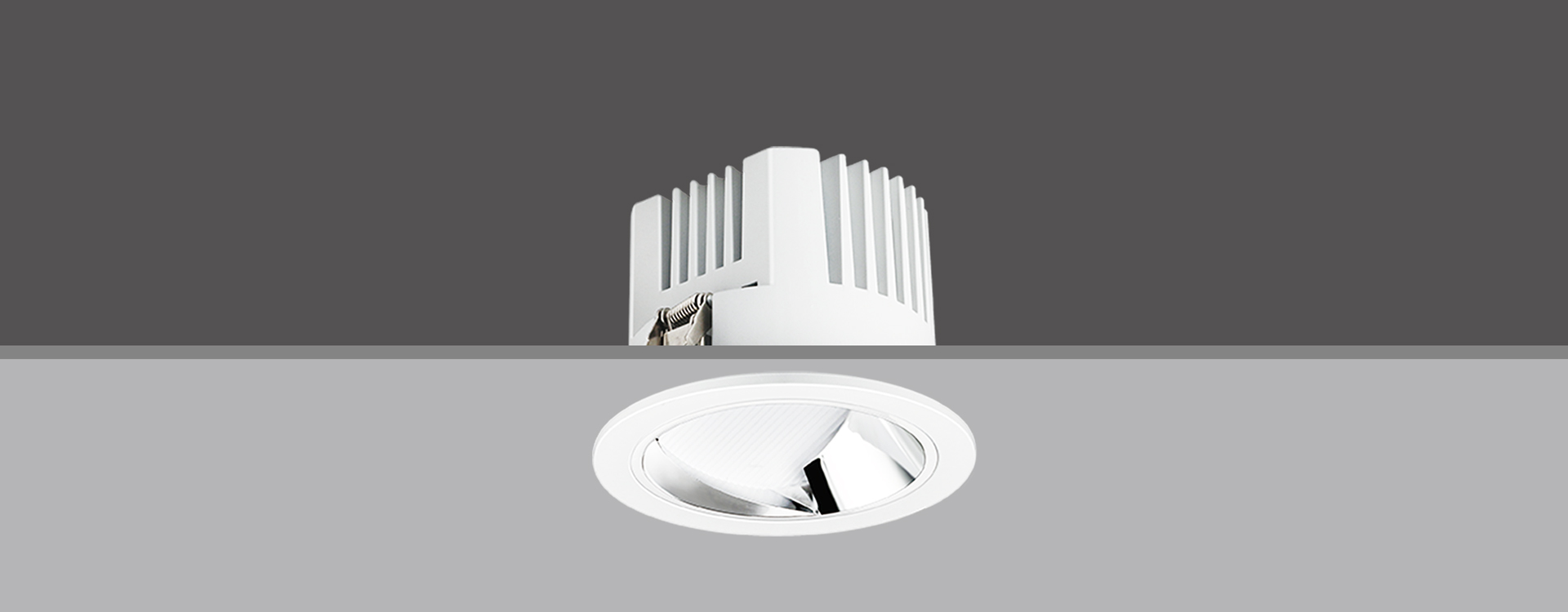

SIDE Wallwasher Recessed Downlight Collection
SIDE is a professional wallwasher downlight, with unique and technical assymetric optic, it could deliver an even and wide assymetrical light. Simple and elegant design, easy for installation. Using latest new COB technology. It's suitable for office building, shopping mall, hotel, high class club and exhibition & display area etc… Die-casting aluminium housing. Powdercoated finish. High purity anodized reflector, minimized glare light efficiently.Driver is connected externally.No UV or IR, can protect commodities properly, to avoid the color fading from radiation. Easy for installation and maintenance. Suitable for less than 30mm different thickness of ceiling type.
Product specifications
Luminaire Type:SIDE Wallwasher Recessed Downlight Collection
Luminaire Code :81054618/81054848
Input Voltage:220-240V
Wattage:20-30W
Cutout:Dia 125 mm
Beam Angle:walwasher
Materials:Aluminium
Finish:Powder coated
Product Features
Line diagram
Optional Accessories
Reflector color
Frame Color
TYPE
Power
- Power
- 20
- 30
Beam Angle
- Beam Angle
- /
CRI
- CRI
- >90
Color Temperature
- Color Temperature
- 2700
- 3000
- 4000
- 5000
Optional Accessories
- Optional Accessories
Dimming Method
- Dimming Method
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
Frame Color
- Frame Color
- Black.png
- White.png
- Grey.png
Reflector Color
- Reflector Color
Protection Grade
- Protection Grade
- IP 20
Model
81054618
81054618
81054618
81054618
81054848
81054848
81054848
81054848
Luminous
Flux
Flux
(LM)
1515.2
1584.1
1675.9
1756.2
2091.8
2186.8
2313.6
2424.5
Power
(W)
20
20
20
20
30
30
30
30
Beam
Angle
Angle
(°)
/
/
/
/
/
/
/
/
CRI
>90
>90
>90
>90
>90
>90
>90
>90
Color
Temperature
Temperature
(K)
2700
3000
4000
5000
2700
3000
4000
5000
