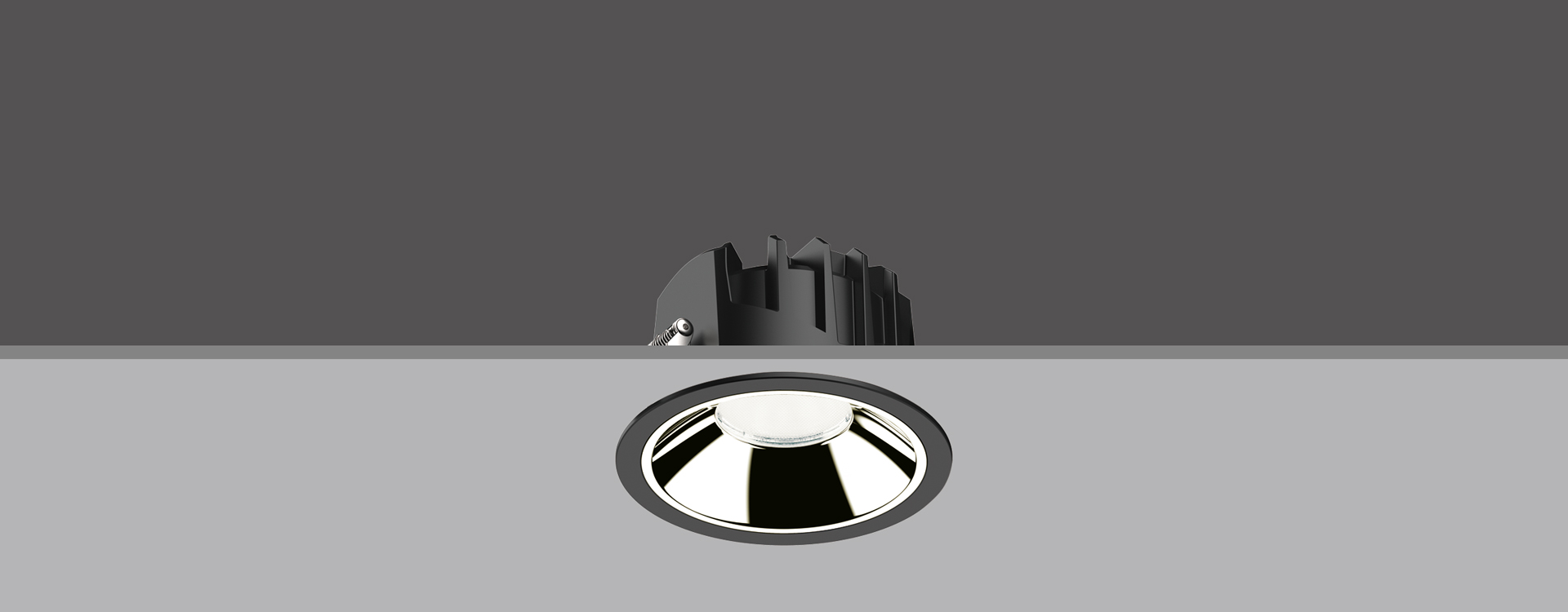

BRIM II Professional Recessed Downlight Collection
BRIM II is a professional high lumen output LED downlight, excellent anti-glare control, can meet different requirement for your space. Especially for the area which has limit of height. With simple and elegant design, easy for installation. Using latest new COB technology. It's suitable for office building, shopping mall, hotel, highclass club and exhibition & display area etc…Die-casting aluminium housing. Powder coated finish. Different color of PC reflector, minimized glare light efficiently. Driver is connected externally. No UV or IR, can protect commodities properly, to avoid the color fading from radiation. Easy for installation and maintenance. Suitable for less than 30mm different thickness of ceiling type
Product specifications
Luminaire Type:BRIM II Professional Recessed Downlight Collection
Luminaire Code :81054328/81012610
Input Voltage:220-240V
Wattage:12-15W
Cutout:Dia 90 mm
Beam Angle:24°/36°/55°
Materials:Aluminium
Finish:Powder coated
Product Features
Line diagram
Optional Accessories
Reflector color
Frame Color
TYPE
Power
- Power
- 12
- 15
Beam Angle
- Beam Angle
- 15
- 24
- 38
- 55
CRI
- CRI
- >90
Color Temperature
- Color Temperature
- 2700
- 3000
- 4000
- 5000
Optional Accessories
- Optional Accessories
Dimming Method
- Dimming Method
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
Frame Color
- Frame Color
- Black.png
- Grey.png
- White.png
Reflector Color
- Reflector Color
- darklight.png
- mat black.png
- White.png
- satin.png
Protection Grade
- Protection Grade
- IP 20
Model
81054328
81054328
81054328
81054328
81054328
81054328
81054328
81054328
81054328
81054328
81054328
81054328
81054328
81054328
81054328
81054328
81012610
81012610
81012610
81012610
81012610
81012610
81012610
81012610
81012610
81012610
81012610
81012610
81012610
81012610
81012610
81012610
Luminous
Flux
Flux
(LM)
1064.1
1005.5
1101.4
947.6
1113.9
1052.6
1153.0
992.0
1180.4
1115.5
1221.9
1051.3
1230.3
1162.6
1273.5
1095.7
1213.2
1129.5
1252.5
1068.8
1270.0
1182.5
1311.2
1118.9
1345.8
1253.1
1389.5
1185.7
1402.7
1306.0
1448.2
1235.8
Power
(W)
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
Beam
Angle
Angle
(°)
15
24
38
55
15
24
38
55
15
24
38
55
15
24
38
55
15
24
38
55
15
24
38
55
15
24
38
55
15
24
38
55
CRI
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
Color
Temperature
Temperature
(K)
2700
2700
2700
2700
3000
3000
3000
3000
4000
4000
4000
4000
5000
5000
5000
5000
2700
2700
2700
2700
3000
3000
3000
3000
4000
4000
4000
4000
5000
5000
5000
5000
