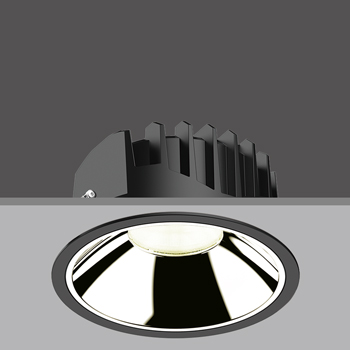

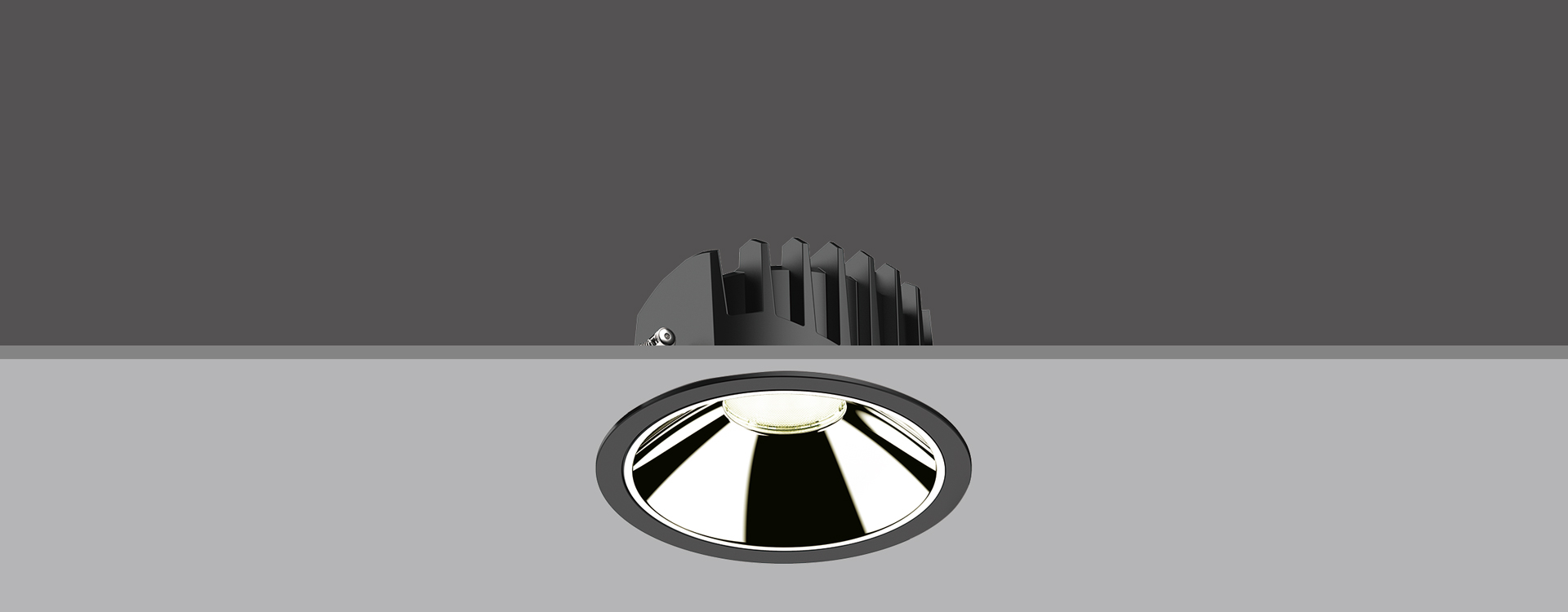

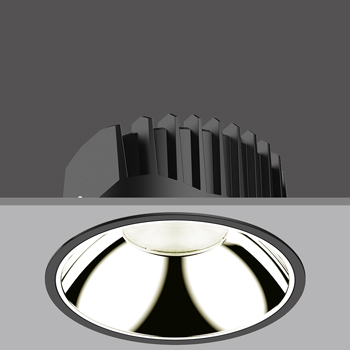

BRIM II Professional Recessed Downlight Collection
BRIM II is a professional high lumen output LED downlight, excellent anti-glare control, can meet different requirement for your space. Especially for the area which has limit of height. With simple and elegant design, easy for installation. Using latest new COB technology. It's suitable for office building, shopping mall, hotel, highclass club and exhibition & display area etc…Die-casting aluminium housing. Powder coated finish. Different color of PC reflector, minimized glare light efficiently. Driver is connected externally. No UV or IR, can protect commodities properly, to avoid the color fading from radiation. Easy for installation and maintenance. Suitable for less than 30mm different thickness of ceiling type.
Product specifications

Luminaire Type:BRIM II Professional Recessed Downlight Collection

Luminaire Code :81032138/81032098

Input Voltage:220-240V

Wattage:25-30W

Cutout:Dia 140 mm

Beam Angle:24°/38°/55°

Materials:Aluminium

Finish:Powder coated

Product Features
Line diagram
Optional Accessories
Reflector color
Frame Color
TYPE
Power
  • Power
Beam Angle
  • Beam Angle
CRI
  • CRI
Color Temperature
  • Color Temperature
Optional Accessories
  • Optional Accessories
Dimming Method
  • Dimming Method
  • 1-Non Dim
  • 2-Phase dimming
  • 3-0-10V dimming
  • 4-DALI dimming
Frame Color
  • Frame Color
  • Black.png
  • Grey.png
  • White.png
Reflector Color
  • Reflector Color
  • darklight.png
  • White.png
  • satin.png
  • mat black.png
Protection Grade
  • Protection Grade
  • IP 20
Model
Luminous
Flux

(LM)

Power

(W)

Beam
Angle

(°)

CRI
Color
Temperature

(K)

Specification
IES
Instruction
Manual
Collect
